Kąt mieszadłowy globalny zawór

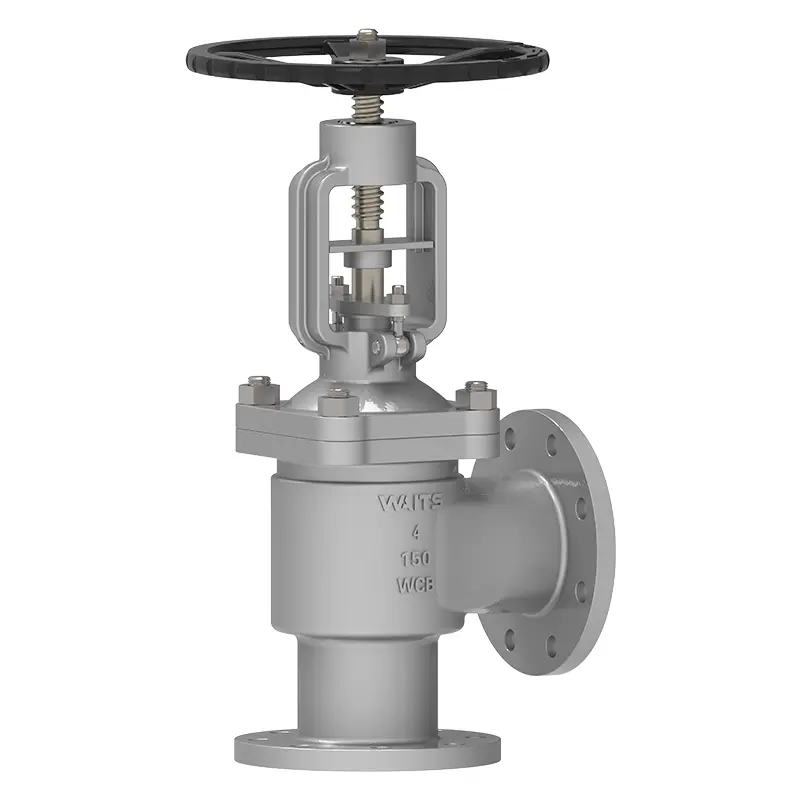

  • Kąt mieszadłowy globalny zawórKąt mieszadłowy globalny zawór

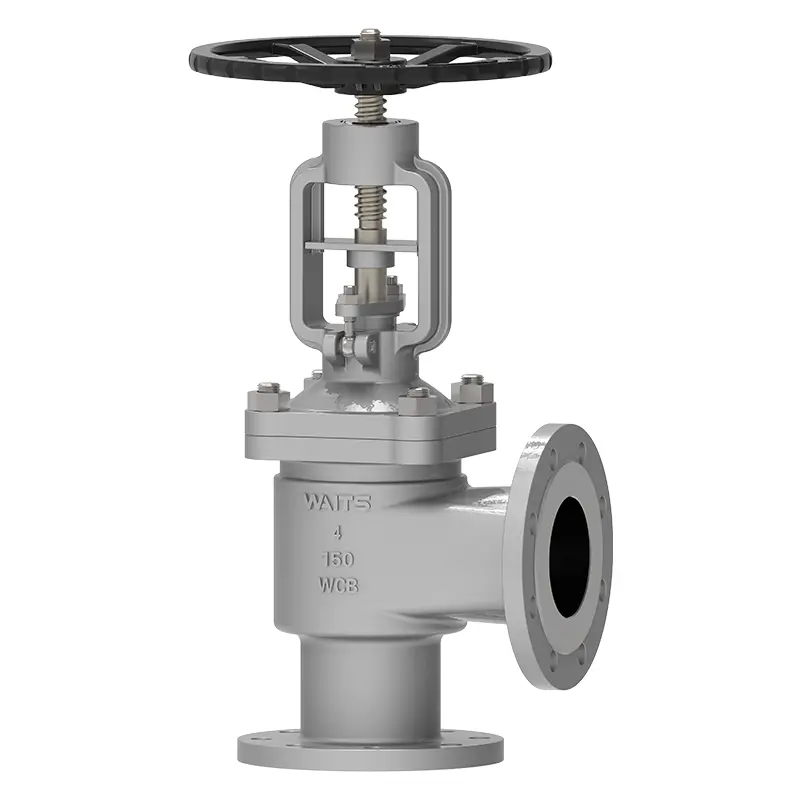

  • Kąt mieszadłowy globalny zawórKąt mieszadłowy globalny zawór

Kąt mieszadłowy globalny zawór

Kąt mieściowy zawór globalny przyjmuje technologię „podwójnego uszczelnienia”, składającą się z metalowych mieszków i pakowania, zapewniając podwójną ochronę. Jego projekt 90 stopni oszczędza przestrzeń i ma niski przepływ oporu, co może zmniejszyć zużycie energii dla Ciebie. Wybór zaworu Wats oznacza wybór uspokajający.

Wyślij zapytanie

Opis produktu

Wats valve high quality Angle Bellows Globe Valve adopts a 90-degree design, which allows the fluid to change direction at right angles and control the flow or cutoff of the fluid by rotating the valve stem. The metal bellows is used as the main sealing component inside the valve body, combined with traditional packing. The valve disc moves linearly along the center line of the fluid, and the bellows expands or contracts accordingly, isolating the fluid from the external environment and preventing leakage.


Implementation Standards-Angle Bellows Globe Valve ‌
Design Standards DIN3356 /BS1873/ASME B16.34
Flange Standard EN1092-1/2/ASME B16.5/ASME B16.47-A/B
Connection RF/FF/RTJ
Test Acceptance EN 12266 API598
Structure Length EN558/ ASME B16.10
Pressure and Temperature Ratings ASME B16.34
Fire Test API607 API6FA
Low Leakage Standard API 622
Anti-Corrosion Design NACE MR 0175
Application-Angle Bellows Globe Valve
Size DN15~DN300(NPS½"~12")
Pressure Range PN16~PN160(Class150~900)
Temperature Range -29℃~+570℃
Application Acid/alkali liquid, liquefied natural gas, high viscosity oil, underground pipeline network, equipment integration module, etc.
Drive Mode Handwheel, bevel gear, electric, pneumatic, etc.
Valve Body/Valve Cover Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5,
Castings: DI A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Valve Core Forgings: A105, A182 F304, F304L, F316, F316L, F51, F53, B148, A350 LF2, LF3, LF5, Monel,
Castings: A216 WCB, CF3, CF8, CF3M, CF8M, 4A, 5A, C95800, LCB, LCC, LC2
Sealing Surface Main body, Main body cladding iron-based alloy, cladding hard-based alloy
Valve Stem A182-F6a-F304-F316-F51 17-4PH/XM-19 ...
Valve Stem Nut Copper alloy
Filler Flexible graphite, graphite asbestos packing, polytetrafluoroethylene...


Performance Characteristics

The structure of Angle Bellows Globe Valve makes it particularly suitable for applications with high reliability requirements, such as systems handling toxic, flammable or corrosive media.


Advantages

1. The key component of Angle Bellows Globe Valve is the metal bellows. It connects the valve cover and the valve stem by automatic roll welding. The metal bellows ensures that the valve stem part is leak-free.

2. Thanks to the conical and streamlined design, the valve disc seals reliably and has a longer service life.

3. Double seal design (bellows + packing). The bellows and packing prevent leakage and provide excellent sealing effect.

4. Angle Bellows Globe Valve can directly lubricate the valve stem, nut and sleeve.

5. Ergonomic handwheel. Longer service life and easier operation.

Angle Bellows Globe ValveAngle Bellows Globe Valve
